Andino X1 Pico is a base board that allows the raspberry pi to be used in an industrial environment on a DIN Rail. This configuration also includes an extension providing dual channel RS232.

The setup documentation section can be found at the bottom!


Andino X1 Pico - Raspberry Pi on DIN Rail

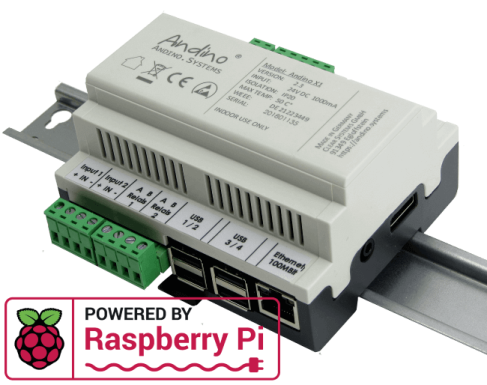

The Andino X1 Pico is a microcontroller board for the Raspberry Pi in a DIN-rail housing for installation in a control cabinet. It is used to adapt digital inputs and outputs for a voltage of 24 V. The X1 Pico has its own microcontroller for precise signal preprocessing and adaptation of signal generators and actuators. It also contains a Raspberry Pi. The inputs and outputs as well as the power supply of the Pi are optimally protected. Communication between the microcontroller and the Pi takes place via the UART interface.

For an introduction on the Andino X1 Pico board, see Andino X1 Pico

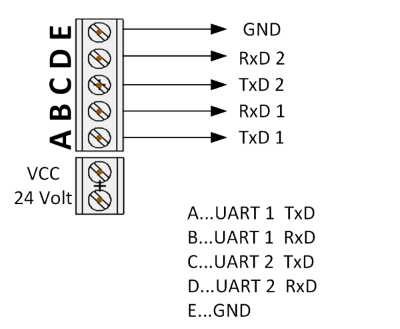

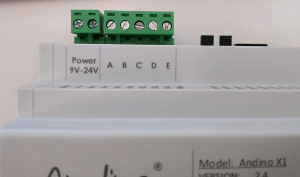

This Extension provides a DualChannel UART to the Raspberry Pi or the Arduino Controller. The Board is based on the SPI Uart from NXP [SC16IS752][3]. The SPI Channel can be jumpered to the Raspberry Pi or the Arduino Controller. With the Arduino Controller time critical protocols can be implemented or a general pre-processing of the data can be performed. For setup tutorials refer to the documentation section below.
